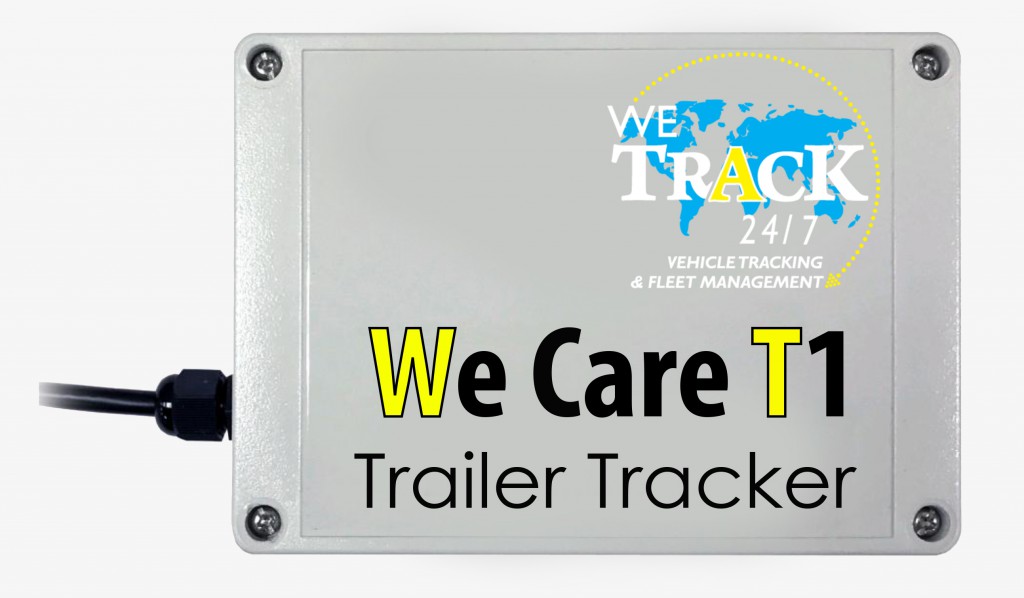

WE CARE T1

Features:

• IP67 waterproof for outdoor demanding environments
• Rechargeable battery capacity 5200mAh or 10400mAh, up to 1 year
  standby time
• Data communications by UMTS/HSPA/GPRS/EDGE, SMS, FTP, USSD
• Support GPS/ Glonass＊/ BDS＊/ Galileo＊ Satellite System
• Built-in 3-axis or 6-axis＊ accelerometer
• Support harsh acceleration/ harsh braking/Impact detection/ harsh
  cornering＊/ Flip over detection＊
• Support 1-Wire® interface temperature function and i-Button driver ID
• Geofence report in circular and polygonal types
• Remote configuration
• Configurable real-time tracking
• Intelligent power management
• GPS Odometer data reading and rich user-defined reports
• FOTA firmware via FTP
• Power low/lost alarm
• GSM jamming detection
• Maximum 100,000 data logs

Advantages
3G/2G Network
1-Wire® Interface
Assisted-GPS (Ephemeris)
Multi Satellite System (GNSS)
Automatic Self-Diagnostic Record
Large Battery Capacity
＊RS232 Interface

Specifications
Communication Specification
‧ Frequency
2G/GSM: Quad band, 900/1800 MHz
3G/ UMTS/HSPA: B1,B2,B5,B18,B19
‧Data Protocol：TCP, UDP, SMS, Voice, USSD

GNSS Performance
‧ Datum：WGS-84
‧ Receiver type：72 channels
‧ Sensitivity：-167 dBm; 26s

General Specification
‧ Dimensions (L x W x H)：145mm x 105mm x 65mm
‧ Weight：622g
‧ Power Source：6-48V DC
‧ Power Consumption：
36mA@12V DC (Operating Mode)
0.5mA@12V DC (Sleep Mode)

Operating Temperature：-20 ~+70 (-4 ~158 )

Interface
‧ Serial Ports：1 x RS-232 Port＊
‧ 1 x 1-Wire® Port
‧ USB Port(Configurable baud rate)
‧ RS-232 Version：
Input Ports：1 x Digital Inputs (Positive trigger)
Output Ports：1 x Output (Max. sink current 300mA)
‧ Without RS-232 Version：
Input Ports：3 x Digital Inputs (1 x Positive trigger & 2 x Negative triggers)
Output Ports：2 x Outputs (Max. sink current 300mA)
‧1 x Analog Input (12-bit resolution)
‧1 x 1-Wire® Input
(＊)Optional

Accessories
Standard
Backup battery：Li-Ion 5200 mAh
(Optional 10400 mAh)

Option
USB cable
i-button
1-Wire® Temperature sensor

Applications
Vehicle trailer tracking
Cargo/Container tracking
Mobile asset tracking
Fleet management
Location based services
